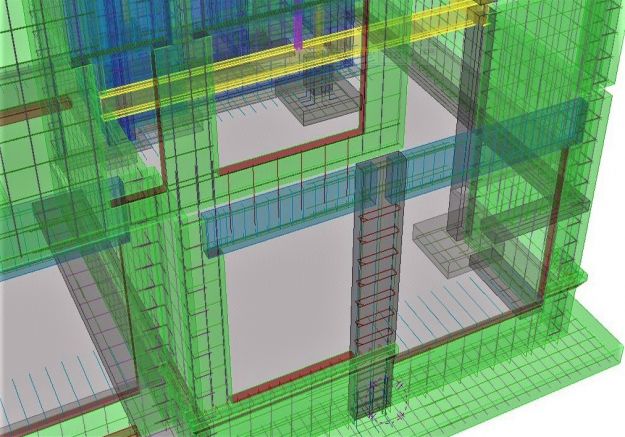

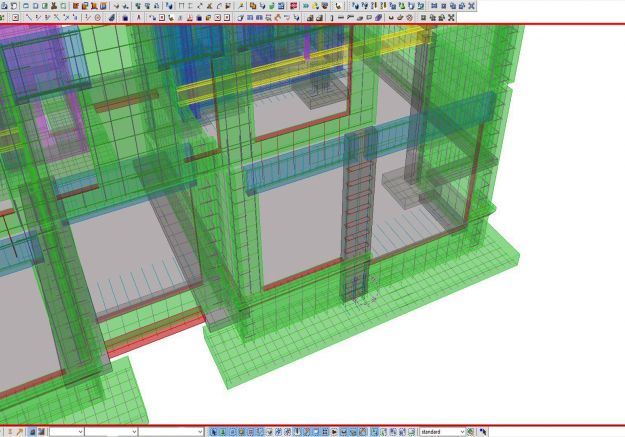

Complex reinforced concrete structures are created in Tekla 3D software; this way we're helping contractors to visualize them better and ensure high accuracy of our bar lists.
Shop drawings that will include:

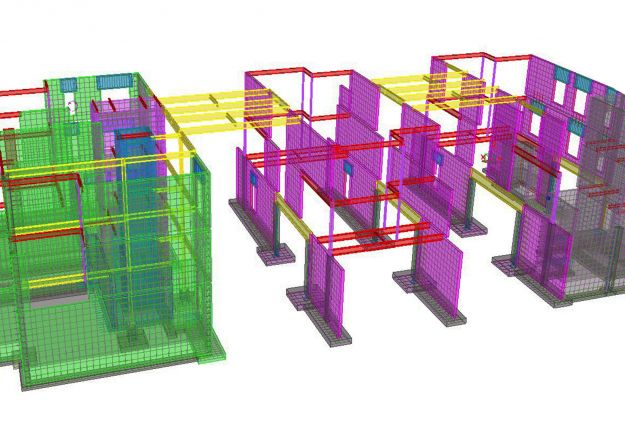

▪ General 3D views of the structure

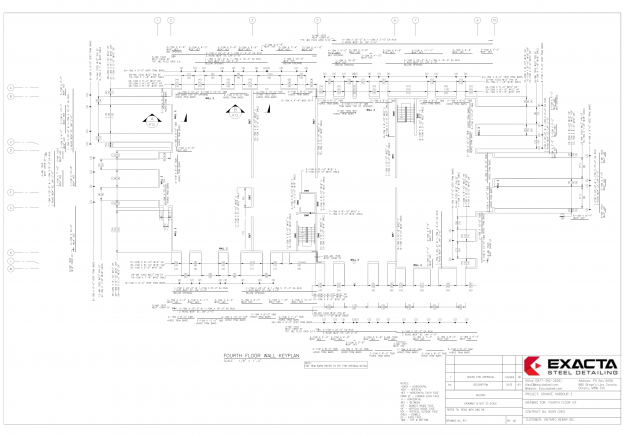

▪ Detailed plans
▪ Elevation views

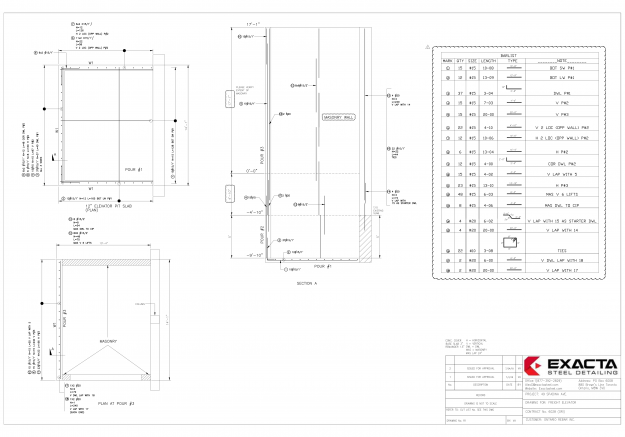

▪ Detailed element views
▪ All necessary sections
▪ Isometric details of complex places
▪ Assembly drawings, for elements preassembled in shop
▪ Advanced Bill of Material
▪ Cut lists and reports to suit your specific needs
▪ Files in various formats for automated shop machines such as NC, DXF and other
▪ Great quality drawings on time and within budget
▪ Flexible and adjustable design products accustomed to your specific needs
▪ Open lines of communication with problem-solving environment
▪ Tracking of any changes that may affect your contract cost
▪ Client's online cabinet and FTP server with project status and updates
▪ Constant and full support by our professional team
▪ For all jobs done in Tekla we supply interactive 3D model of your project with Tekla's free viewer. This will allow you to see your project in 3D, make measurements, write comments and use other useful features.
▪ Residential construction: High-rises, Apartment complexes, Condominiums, Townhouses, Custom Homes
▪ Commercial development: Hotels, Restaurants, Sports facilities, Retail stores, Shopping malls, Shops, Office and Service buildings
▪ Industrial installations: Plants, Warehouses, Manufacturing & Telecom/Data Hosting Centers, Flex and Showroom Buildings
▪ Bridges and special structures
▪ Drawings produced in Imperial or Metric formats
▪ Drawing files provided in PDF, DWG
▪ Production line equipment files: CNC, DXF
▪ Reports and Bill of Material: DOC, EXCEL, PDF
▪ Large variety of other formats for Material Management software, shop machinery, and construction
▪ FTP site is available for convenient and secure transfer of large files
